XGZP6886A (MPX4115AP,MPX5700AP, MPX5100AP Alternative Parts)

Wide Ranges: 0kPa～100kPa…700kPa
Absolute Pressure Type
For Non-corrosive Gas or Air
Calibrated Amplified Analog Signal
Temp. Compensated: 0℃～+85℃(32℉～+185℉)
Direct Application,Low Cost
Customization available

Description
SAFETY NOTES & WARRANTY

XGZP6886A pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibrations (working voltage,output voltage,and pressure range) are available.

ESSENTIAL DETAILS

MPX4115AP, MPX5700AP, MPX5100AP vs XGZP6886A Comparison


Manufacturer	CFSensor	NXP	NXP	NXP
Product Category	Pressure Sensor	Pressure Sensor	Pressure Sensor	Pressure Sensor
Series	XGZP6886A	MPX4115A	MPX5700	MPX5100
Model Number	As Order Guide	MPX4115AP	MPX5700AP	MPX5100AP
Pressure Range	0kPa～100kPa…700kPa	15KPa～115KPa	15KPa～700KPa	0KPa～100KPa
Pressure Type	Absolute	Absolute	Absolute	Absolute
Power Supply	4.75V ~ 5.25V	4.85V ~ 5.35V	4.75V ~ 5.25V	4.75V ~ 5.25V
Output Type	Analog	Analog	Analog	Analog
Output	0.2 V ~ 4.8 V	0.2 V ~ 4.8 V	0.2 V ~ 4.7 V	0.2 V ~ 4.7 V
Accuracy	±2.5%	±1.5%	±2.5%	±2.5%
Measured Media	Air or Non-corrosive Gas
Temp. Compensated	Yes	Yes	Yes	Yes
Operating Temp	-30~120°C	-40°C~125°C	-40°C~125°C	-40°C~125°C
Package	Tray	Tray	Tray	Tray

APPLICATIONS

Tank level measurement, Liquid level measurement, White goods(e.g.washer), Heating, Ventilation, Air conditioning, Filter detection, Industrial controls.
Medical gas control system, Hospital beds, Massage device, Engine control/manifold absolute pressure(MAP), Green gas( LPG and CNG) control and measurement.
Weather station and weather reporting device barometers, Sport and leisure equipment, Vacuum measurement, pneumatic device, Absolute pressure meter.

INTRODUCTION

XGZP6886A is a prefect silicon pressure sensor offering a ratiometric analog interface for reading absolute pressure over the specified full scale pressure span and temp.range.

The XGZP6886A incorporates a silicon piezoresistive pressure sensor chip and an interior signal-conditional Application Specific Integrated Circuit(ASIC) in a SIP package with a barbed air vents and long 6 PIN, which can be mounted freely from different direction.

The XGZP6886A is fully calibrated and temperature compensated for offset, sensitivity, temperature and non-linearity, so XGZP6886A pressure sensor satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical&healthy, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc.

DIMENSION (Unit:mm)

xgzp6886a dimension

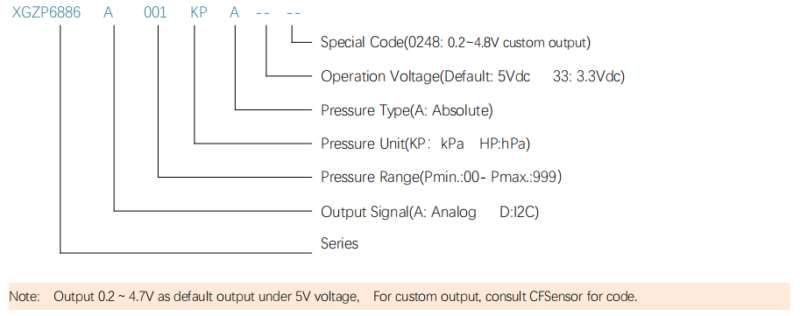

ORDER GUIDE (100kPa=0.1MPa=1bar≈14.5PSI)

xgzp6886a order guide

Note:
1. For specific output e.g 0.2~4.8V, signify output figure behind part number, e.g. : XGZP6886A15115KPA0248
2. Custom requirement or parameter, please consult CFSensor for custom code(e.g custom pressure range etc,.)

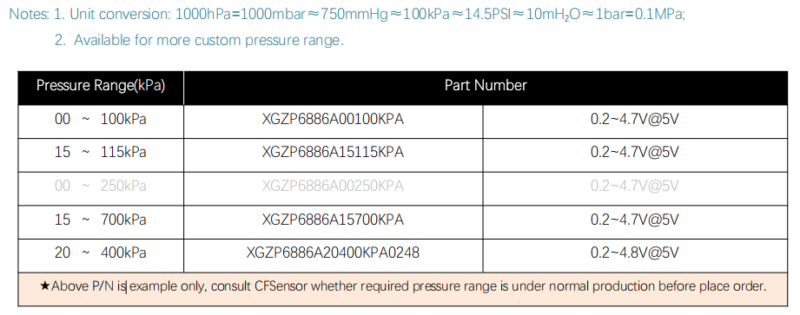

PRESSURE RANGE EXAMPLE

Please consult CFSensor whether required pressure range is under normal production before place order.

Notes:
1. Unit conversion: 1000hPa=1000mbar≈750mmHg≈100kPa≈14.5PSI≈10mH2O≈1bar=0.1MPa;
2. Available for more custom pressure range e.g. 0～3.92kPa,-2～2kPa,0～6kPa, 0～25kPa etc,.

mpx4115ap, mpx5700ap, mpx5100ap alternative parts xgzp6886a pressure range example

More about the difference between MPX4115AP, MPX5700AP, MPX5100AP and XGZP6886A, refer to Datasheet or contact CFSensor

XGZP6886A Pressure Sensor V1.3.PDF

SAFETY NOTES & WARRANTY

SAFETY NOTES

Using these sensors products may malfunction due to external interference and surges, therefore, please confirm the performance and quality in actual use. Just in case, please make a safety design on the device (fuse, circuit breaker, such as the installation of protection circuits, multiple devices, etc.), so it would not harm life, body, property, etc even a malfunction occurs. To prevent injuries and accidents, please be sure to observe the following items:

The driving current and voltage should be used below the rated value.
Please follow the terminal connection diagram for wiring. Especially for the reverse connection of the power supply, it will cause an accident due to circuit damage such as heat, smoke, fire, etc.
In order to ensure safety, especially for important uses, please be sure to consider double safety circuit configuration.
Do not apply pressure above the maximum applied pressure. In addition, please be careful not to mix foreign matter into the pressure medium. Otherwise, the sensor will be discarded, or the media will blew out and cause an accident.
Be careful when fixing the product and connecting the pressure inlet. Otherwise, accidents may occur due to sensor scattering and the blowing out of the media.
If the sensor come with sharp PIN, please be careful not to hurt your body when using it.

WARRANTY

The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the manufacturer. CFSensor reserves the right to make changes without further notice to any product herein.

CFSensor makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does CFSensor assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different applications. All operating parameters must be validated for each customer application by customer’s technical experts. CFSensor does not convey any license under its patent rights nor the rights of others.
