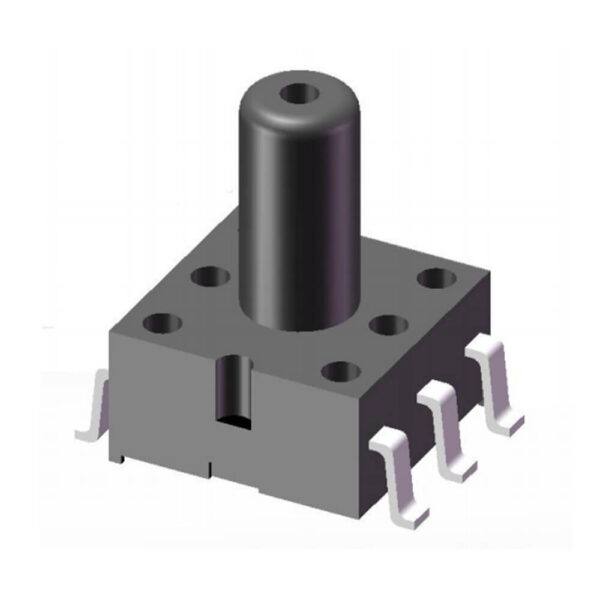

XGZP6857A (AP2 Series Alternative Parts)

Wide Ranges: -100kPa…0kPa…1000kPa
Optional 5V or 3.3V Power Supply
Gage (Positive&Vacuum) Type
For Non-corrosive Gas or Air

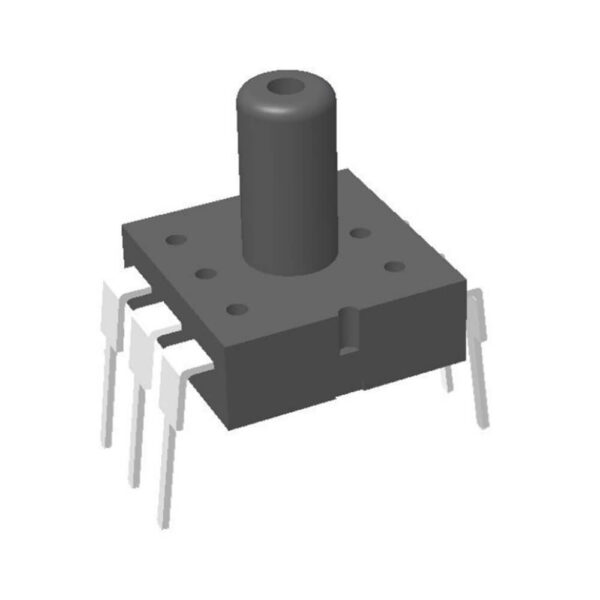

Calibrated Amplified Analog Signal(Refer to XGZP6857D for I2C interface)
Temp. Compensated: 0℃～+60℃(32℉～+140℉)
Easy-to-use, Low Cost

Description
SAFETY NOTES & WARRANTY

XGZP6857A pressure sensor is for high volume application at an affordable cost and perfect performance. Customized calibration parameter (pressure range, working voltage, output etc.) are available.

ESSENTIAL DETAILS

AP2 Series vs XGZP6857A Comparison


Manufacturer	CFSensor	FUJIKURA
Product Category	Pressure Sensor	Pressure Sensor
Series	XGZP6857A	AP2 series
Model Number	As Order Guide	AP2
Pressure Range	-100kPa…0kPa…1000kPa	0kPa…25 kPa ～ 0kPa…1000 kPa
Pressure Type	Gauge	Gauge
Power Supply	5V/3.3V	3.0, 3.3 & 5.0 Vdc
Output Type	Amplified Analog	Amplified Analog
Output	0.5~4.5V/0.2~2.7V	0.5~4.5V
Accuracy	±2.5%(customizable)	±1.5%/±2.5%
Measured Media	Air or Non-corrosive Gas	Non-corrosive gases
Temp. Compensated	0~60°C	0~85°C
Operating Temp	-30~120°C	-40°C~125°C
Package	Plastic Tube

APPLICATIONS

Medical&Healthy: e.g. ventilators, CPAP, NPWT, DVT, blood analysis, blood pressure monitoring, drug dosing, hospital beds, oxygen concentrators, patient monitoring, sleep apnea equipment, urine analyzers and wound therapy, breast pumps, massage device etc.
Consumer&Household: e.g. Robot, UAV, wearable device, coffee makers, washing machines, vacuum cleaners, hand dryers, air pump, air beds etc.
Industrial&Automation: e.g. HVAC, flow and liquid level measurement, process control and monitoring,
life sciences, pressure switch and meter, IoT and automotive application etc.

INTRODUCTION

XGZP6857A is a perfect silicon pressure sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span.

The XGZP6857A incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a DIP6 package.

The XGZP6857A is fully calibrated and temperature compensated for specified span, so XGZP6857A pressure sensor satisfy the perfect accuracry, which is designed for a wide range of applications in medical care&health, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc by utilizing a microcontroller or microprocessor with A/D inputs.

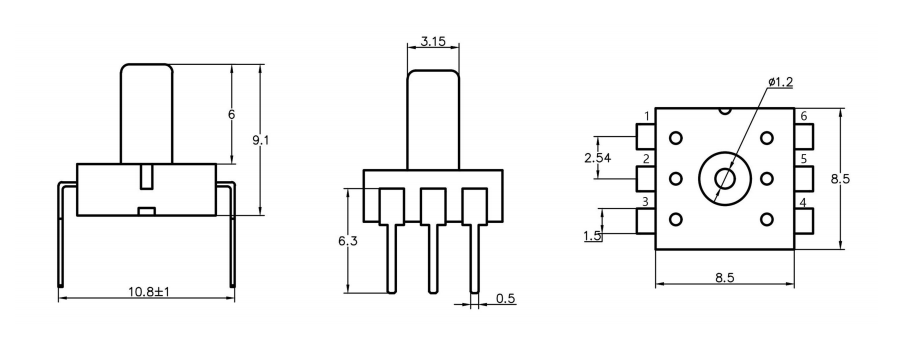

DIMENSION (Unit:mm)

xgzp6857a dimension

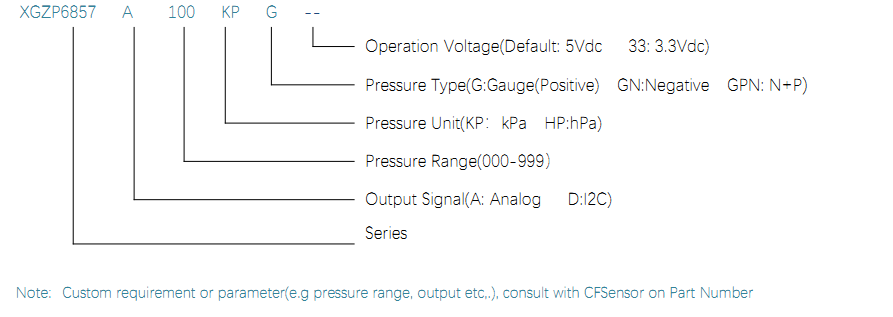

ORDER GUIDE (100kPa=0.1MPa=1bar≈14.5PSI)

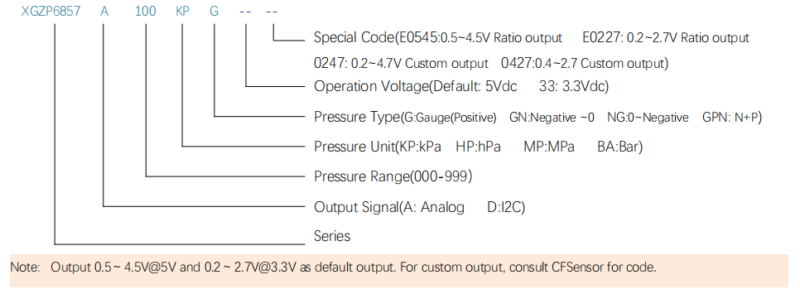

xgzp6857a order guide

Note:
1. Voltage 5Vdc as default value, add 33 behind mode signify 3.3V power supply, e.g. : XGZP6857A050KPG33.
2. Custom requirement or parameter, please consult CFSensor for custom code(e.g custom pressure range etc,.)

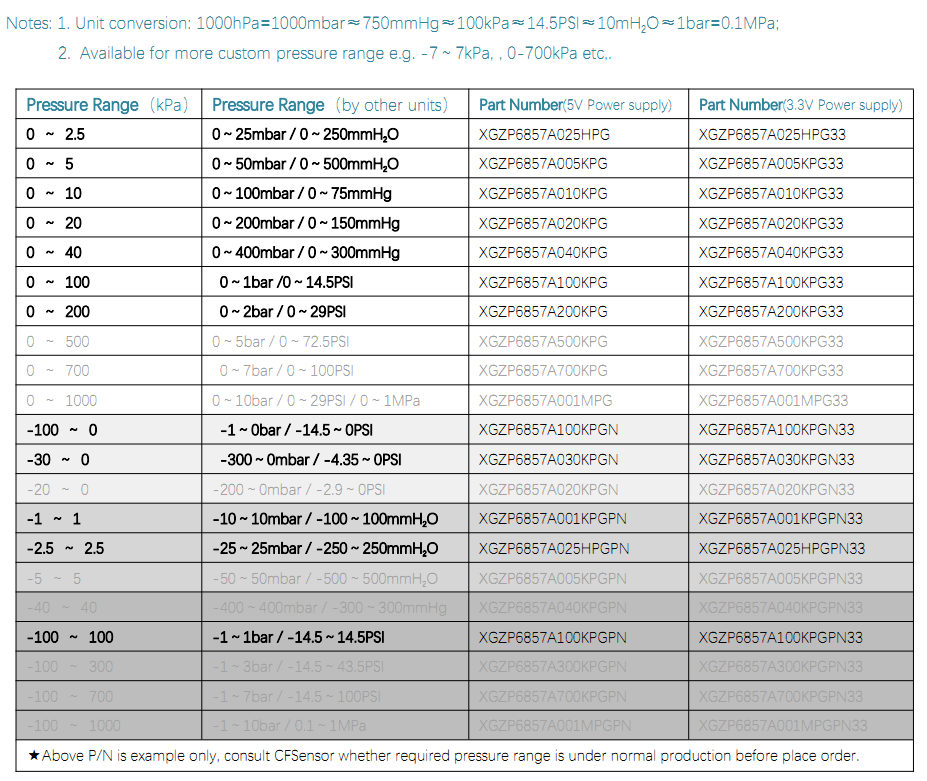

PRESSURE RANGE EXAMPLE

Please consult CFSensor whether required pressure range is under normal production before place order.

Notes:
1. Unit conversion: 1000hPa=1000mbar≈750mmHg≈100kPa≈14.5PSI≈10mH2O≈1bar=0.1MPa;
2. Available for more custom pressure range e.g. -7～7kPa, , 0-700kPa etc,.

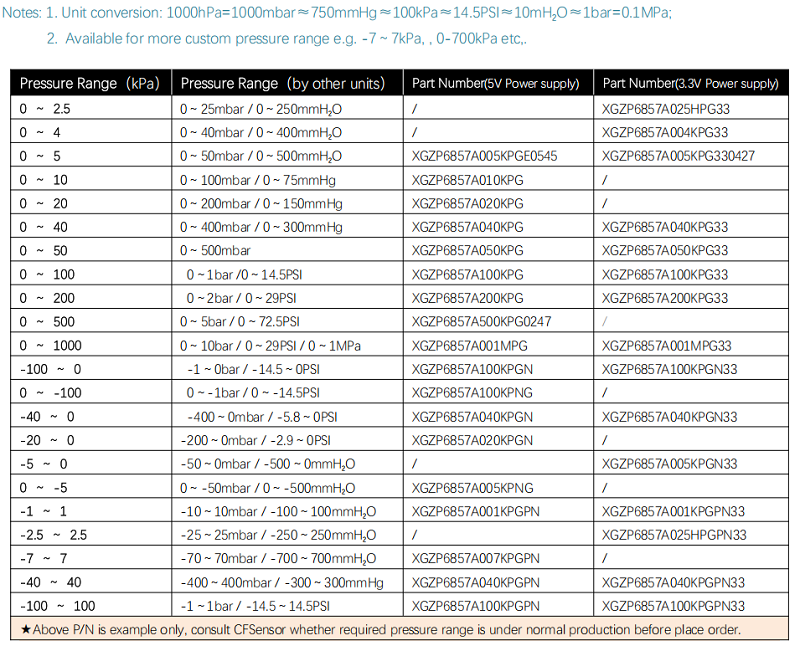

ap2 series alternative parts xgzp6857a pressure range example

More about the difference between AP2 Series and XGZP6857A, refer to Datasheet or contact CFSensor
