XGZP6858A (MPXH6115AC6U, MPXHZ6115AC6U, MPXH6400AC6U, MPXHZ6400AC6T1, MPXH6250AC6U, MPXH6250AC6T1, MPXHZ6250AC6T1 Alternative Parts)

Wide Ranges: 0kPa～100kPa…700kPa(show in Pressure Range Example)
Optional 5V or 3.3V Power Supply
Absolute Pressure Type
For Non-corrosive Gas or Air or Liquid
Calibrated Amplified Analog Signal(Refer to XGZP6858D for I2C interface)
Temp. Compensated: 0℃～+60℃(32℉～+140℉)
Direct Application, Low Cost.

Description
SAFETY NOTES & WARRANTY

Description

ESSENTIAL DETAILS

MPXH6115AC6U vs MPXHZ6115AC6U vs MPXH6400AC6U vs MPXHZ6400AC6T1 vs MPXH6250AC6U vs MPXH6250AC6T1 vs MPXHZ6250AC6T1 vs XGZP6858A Comparison


Manufacturer	CFSensor	NXP	NXP	NXP	NXP	NXP	NXP	NXP
Product Category	Pressure Sensor	Pressure Sensor	Pressure Sensor	Pressure Sensor	Pressure Sensor	Pressure Sensor	Pressure Sensor	Pressure Sensor
Series	XGZP6858A	MPXH6115A	MPXHZ6115A	MPXH6400A	MPXHZ6400A	MPXH6250A	MPXH6250A	MPXHZ6250A
Model Number	As Order Guide	MPXH6115AC6U	MPXHZ6115AC6U	MPXH6400AC6U	MPXHZ6400AC6T1	MPXH6250AC6U	MPXH6250AC6T1	MPXHZ6250AC6T1
Pressure Range	0kPa～100kPa…700kPa	15KPa～115KPa	15KPa～115KPa	20KPa～400KPa	20KPa～400KPa	20KPa～250KPa	20KPa～250KPa	20KPa～250KPa
Pressure Type	Absolute	Absolute	Absolute	Absolute	Absolute	Absolute	Absolute	Absolute
Power Supply	5V/3.3V	4.75V ~ 5.25V	4.75V ~ 5.25V	4.64V ~ 5.36V	4.64V ~ 5.36V	4.75V ~ 5.25V	4.75V ~ 5.25V	4.75V ~ 5.25V
Output Type	Amplified Analog	Analog	Analog	Analog	Analog	Analog	Analog	Analog
Output	0.5~4.5V/0.2~2.7V	0.2 V ~ 4.7 V	0.2 V ~ 4.7 V	0.2 V ~ 4.8 V	0.2 V ~ 4.8 V	0.3 V ~ 4.9 V	0.3 V ~ 4.9 V	0.3 V ~ 4.9 V
Accuracy	±2.5%(customizable)	±1.5%	±1.5%	±1.5%	±1.5%	±1.5%	±1.5%	±1.5%
Measured Media	Air or Non-corrosive Gas or Liquid
Temp. Compensated	0℃～+60℃(32℉～+140℉)	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C
Operating Temp	-30~105°C	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C	-40°C~125°C
Package	Plastic Tube	Tube	Tube	Tube	Tape & Reel (TR)/Cut Tape (CT)/Digi-Reel®	Tube	Bulk	Tape & Reel (TR)/Cut Tape (CT)/Digi-Reel®

Notice: Pin definitions vary, refer to datasheet only.

APPLICATIONS

Tank level measurement, Water and Liquid level measurement etc,.
Engine control/manifold absolute pressure (MAP), Oil pressure etc,.
Medical gas control system, Hospital beds, Medical device etc,.
Weather station, Barometers, Altitude measurement etc,.
Vacuum measurement, Industrial controls etc,.

INTRODUCTION

XGZP6858A is a perfect silicon pressure sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span.

The XGZP6858A incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a SMT package.

The XGZP6858A is fully calibrated and temperature compensated for specified span, so XGZP6858A pressure sensor satisfy the perfect accuracry, which is designed for a wide range of application in medical care&health, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc by utilizing a microcontroller or microprocessor with A/D inputs.

XGZP6858A pressure sensor is for high volume application at an affordable cost but perfect performance.

Customized calibrations(working voltage, output voltage, pressure range etc.) are available.

DIMENSION (Unit:mm Unspecified Tolerances:±0.1mm)

6858A DIMENSION

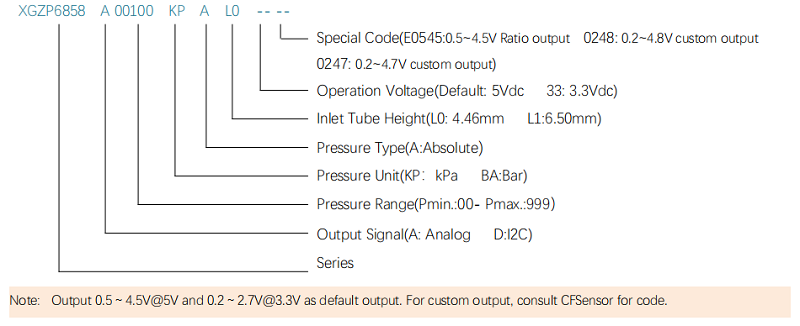

ORDER GUIDE

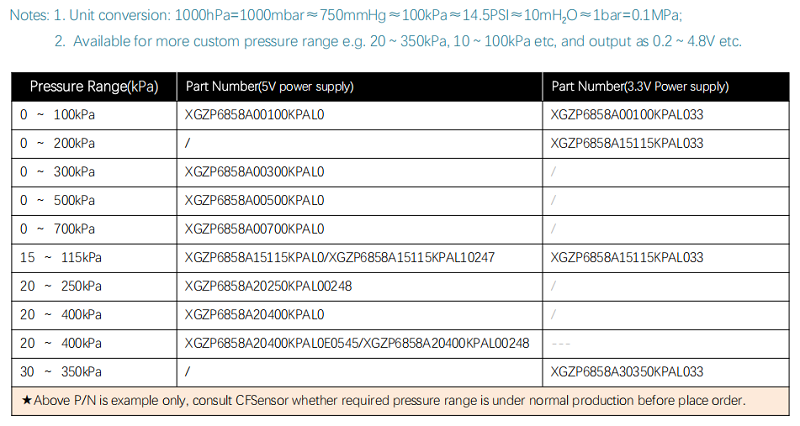

PRESSURE RANGE EXAMPLE

6858A PRESSURE RANGE

More about the difference between MPXH6115AC6U, MPXHZ6115AC6U, MPXH6400AC6U, MPXHZ6400AC6T1, MPXH6250AC6U, MPXH6250AC6T1, MPXHZ6250AC6T1 and XGZP6858A, refer to Datasheet or contact CFSensor

XGZP6858A Pressure Sensor V2.8.PDF

SAFETY NOTES & WARRANTY

SAFETY NOTES

Using these sensors products may malfunction due to external interference and surges, therefore, please confirm the performance and quality in actual use. Just in case, please make a safety design on the device (fuse, circuit breaker, such as the installation of protection circuits, multiple devices, etc.), so it would not harm life, body, property, etc even a malfunction occurs. To prevent injuries and accidents, please be sure to observe the following items:

The driving current and voltage should be used below the rated value.
Please follow the terminal connection diagram for wiring. Especially for the reverse connection of the power supply, it will cause an accident due to circuit damage such as heat, smoke, fire, etc.
In order to ensure safety, especially for important uses, please be sure to consider double safety circuit configuration.
Do not apply pressure above the maximum applied pressure. In addition, please be careful not to mix foreign matter into the pressure medium. Otherwise, the sensor will be discarded, or the media will blew out and cause an accident.
Be careful when fixing the product and connecting the pressure inlet. Otherwise, accidents may occur due to sensor scattering and the blowing out of the media.
If the sensor come with sharp PIN, please be careful not to hurt your body when using it.

WARRANTY

The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the manufacturer. CFSensor reserves the right to make changes without further notice to any product herein.

CFSensor makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does CFSensor assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different applications. All operating parameters must be validated for each customer application by customer’s technical experts. CFSensor does not convey any license under its patent rights nor the rights of others.
