ESSENTIAL DETAILS
SM9541 vs SM9543 vs SM6295 vs XGZP6891A Comparison
Manufacturer | CFSensor | Silicon Microstructures | Silicon Microstructures | Silicon Microstructures |
Product Category | Pressure Sensor | Pressure Sensor | Pressure Sensor | Pressure Sensor |
Series | XGZP6891A | SM9541 | SM9543 | SM6295 |
Model Number | As Order Guide | SM9543-005M-D-C-3-S | SM6295-BCM-S-040-000 | |
Pressure Range | -10kPa…-0.5kPa~0kPa~0.5kPa…10kPa | 10 cmH2O~140 cmH2O | ±5 mbar | 0~40 cmH2O |
Pressure Type | Differential | Differential/Compound | Differential | Gauge |
Power Supply | 5V/3.3V | 3V ~ 3.6V | 3V ~ 3.6V | 4.75V ~ 5.25V |
Output Type | Amplified Analog | Digital | Digital | Amplified Analog |
Output | 0.5~4.5V/0.2~2.7V | |||
Accuracy | ±2.5%(customizable) | ±1% | ±1.5% | ±2.5% |
Measured Media | Dry Air or Non-corrosive Gas | |||
Temp. Compensated | 0℃~+60℃(32℉~+140℉) | -5°C~65°C | -5°C~65°C | 0°C~60°C |
Operating Temp | -30~100°C | -5°C~65°C | -5°C~65°C | -20°C~85°C |
Package | Plastic Tube | Tape & Reel | Tape & Reel | Tape & Reel |
Notice: Pin definitions vary, refer to datasheet only.
APPLICATIONS
- Medical&Healthcare
- Industrial&Automation
- Domestic Appliance
- Consumer Electronic
- Automotive Electronic
INTRODUCTION
XGZP6891A is a prefect silicon pressure sensor offering a ratiometric analog interface for reading differential pressure over the specified full scale pressure span and temp.range.
The XGZP6891A incorporates a silicon piezoresistive pressure sensor chip and an interior signal – conditional Application Specific Integrated Circuit(ASIC) in a SOIC-16 package with two air vents, which can be mounted directly on a standard PCB.
The XGZP6891A is fully calibrated and temperature compensated for offset,sensitivity,temperature and non-linearity, so XGZP6891A pressure sensor satisfy the prefect repeatability,linearity, stability and sensibility, which can be applied directly in medical&healthy, home appliances, consumer electronic, industry, automotive,loT and other pneumatic devices etc.
XGZP6891A pressure sensor is for high volume application at an affordable cost and perfect performance.
Customized calibrations(working voltage,output voltage,and pressure range) are available. If measured media is rather than the dry gas or air, e.g.moist media, contact CFSensor for solution.

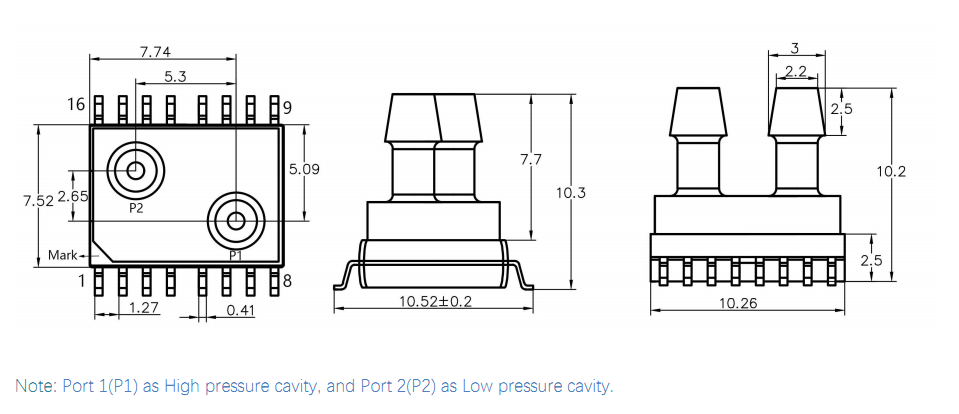

DIMENSION (Unit:mm Unspecified Tolerances:±0.1mm)

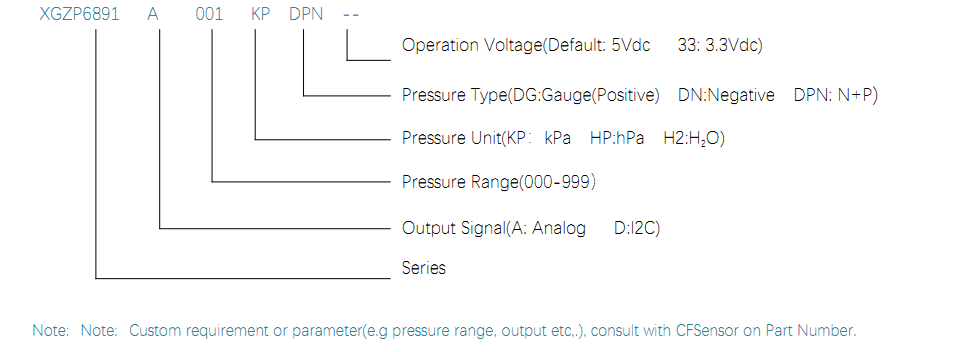

ORDER GUIDE (100kPa=0.1MPa=1bar≈14.5PSI)

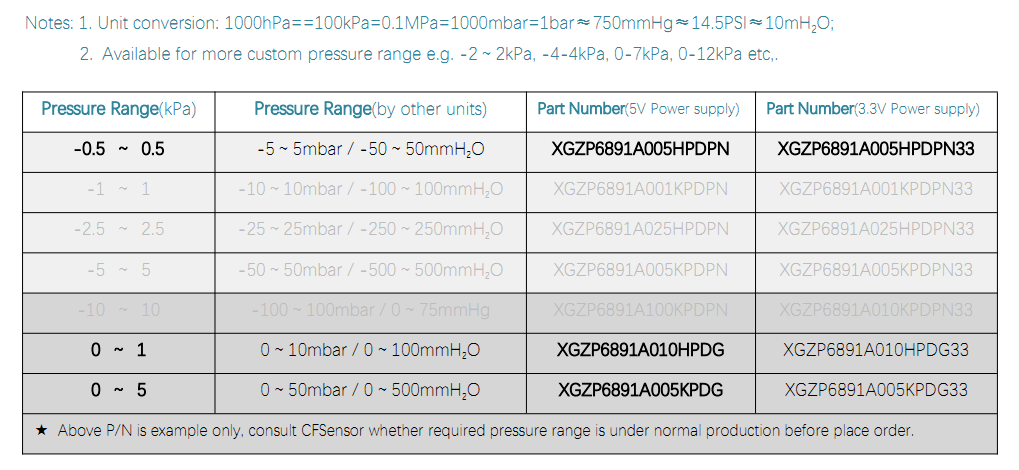

PRESSURE RANGE EXAMPLE
More about the difference between SM9541, SM9543, SM6295 and XGZP6891A, refer to Datasheet or contact CFSensor
