XGZP6878A Pressure Sensor

Wide Ranges: 0kPa～100kPa…2500kPa
Optional 5V or 3.3V Power Supply
Absolute Pressure Type
For Non-corrosive Gas or Air or Liquid
Calibrated Amplified Analog Signal
Temp. Compensated: 0℃～+60℃(32℉～+140℉)
Direct Application, Low Cost

Description
SAFETY NOTES & WARRANTY

XGZP6878A pressure sensor is for high volume application at an affordable cost but perfect performance. Customized calibrations(working voltage, output voltage, pressure range etc.) are available.

XGZP6878A PRESSURE SENSOR ESSENTIAL DETAILS


Manufacturer	CFSensor
Product Category	Pressure Sensor
Series	XGZP6878A
Model Number	As Order Guide
Pressure Range	0kPa～100kPa…2500kPa
Pressure Type	Absolute
Power Supply	5V/3.3V
Output Type	Amplified Analog
Output	0.5~4.5V/0.2~2.7V
Accuracy	±2.5%(customizable)
Measured Media	Air or Non-corrosive Gas or Liquid
Temp. Compensated	0~60°C
Operating Temp	-30~120°C
Package	Plastic Tube or Tape&Reel

APPLICATIONS

Tank level measurement, Liquid level measurement, White goods(e.g.washer), Heating, Ventilation, Air conditioning, Fire extinguisher, Filter detection, Industrial controls.
Medical gas control system, Hospital beds, Massage device, Oil pressure, Engine control/manifold absolute pressure (MAP), Green gas( LPG and CNG) control and measurement.
Weather station and weather reporting device barometers, Sport and leisure equipment, Vacuum measurement, pneumatic device, Absolute pressure meter.

INTRODUCTION

XGZP6878A is a perfect silicon pressure sensor offering a ratiometric analog interface for reading pressure over the specified full scale pressure span.

The XGZP6878A pressure sensor incorporates a silicon piezoresistive pressure sensor die and an interior Application Specific Integrated Circuit(ASIC) in a SMT package.

The XGZP6878A pressure sensor is fully calibrated and temperature compensated for specified span, so XGZP6878A pressure sensor satisfy the perfect accuracry, which is designed for a wide range of application in medical care&health, home appliances, consumer electronic, industry, automotive, loT and other pneumatic devices etc by utilizing a microcontroller or microprocessor with A/D inputs.

DIMENSION (Unit:mm)

xgzp6878a dimension

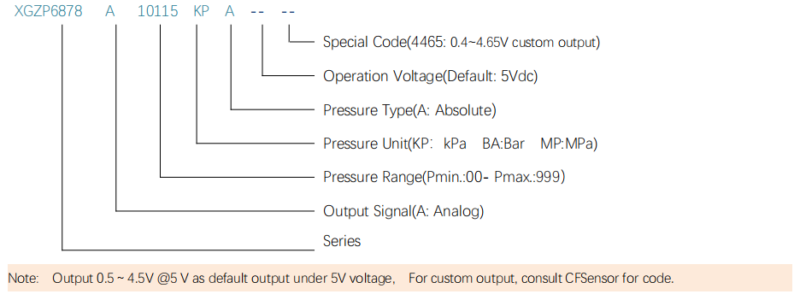

ORDER GUIDE (100kPa=0.1MPa=1bar≈14.5PSI)

xgzp6878a order guide

Note:
1. Voltage 5Vdc as default value, add 33 behind model signify 3.3V power supply, e.g. : XGZP6878A00700KPA33.
2. Custom requirement or parameter, please consult CFSensor for custom code(e.g custom pressure range etc.)

PRESSURE RANGE EXAMPLE

Please consult CFSensor whether required pressure range is under normal production before place order.

Notes:
1. Unit conversion: 1000hPa=1000mbar≈750mmHg≈100kPa≈14.5PSI≈10mH2O≈1bar=0.1MPa;
2. The offset value can be calibrated from atmospheric pressure(101.3kPa) as required for part of product model.

xgzp6878a pressure range example

More information about XGZP6878A pressure sensor, refer to Datasheet or contact CFSensor

XGZP6878A Pressure Sensor V2.4.PDF

SAFETY NOTES & WARRANTY

SAFETY NOTES

Using these sensors products may malfunction due to external interference and surges, therefore, please confirm the performance and quality in actual use. Just in case, please make a safety design on the device (fuse, circuit breaker, such as the installation of protection circuits, multiple devices, etc.), so it would not harm life, body, property, etc even a malfunction occurs. To prevent injuries and accidents, please be sure to observe the following items:

The driving current and voltage should be used below the rated value.
Please follow the terminal connection diagram for wiring. Especially for the reverse connection of the power supply, it will cause an accident due to circuit damage such as heat, smoke, fire, etc.
In order to ensure safety, especially for important uses, please be sure to consider double safety circuit configuration.
Do not apply pressure above the maximum applied pressure. In addition, please be careful not to mix foreign matter into the pressure medium. Otherwise, the sensor will be discarded, or the media will blew out and cause an accident.
Be careful when fixing the product and connecting the pressure inlet. Otherwise, accidents may occur due to sensor scattering and the blowing out of the media.
If the sensor come with sharp PIN, please be careful not to hurt your body when using it.

WARRANTY

The information in this sheet has been carefully reviewed and is believed to be accurate; however, no responsibility is assumed for inaccuracies. Furthermore, this information does not convey to the purchaser of such devices any license under the patent rights to the manufacturer. CFSensor reserves the right to make changes without further notice to any product herein.

CFSensor makes no warranty, representation or guarantee regarding the suitability of its product for any particular purpose, nor does CFSensor assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all liability, including without limitation consequential or incidental damages. Typical parameters can and do vary in different applications. All operating parameters must be validated for each customer application by customer’s technical experts. CFSensor does not convey any license under its patent rights nor the rights of others.
